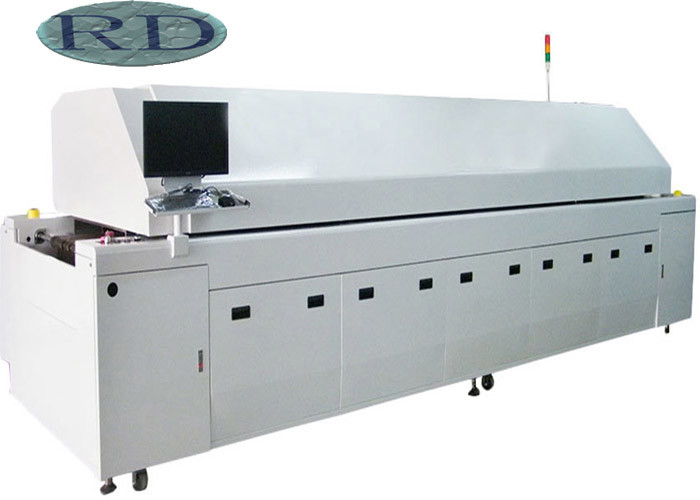

800L SMT lead free PCB Vitronics BGA Infrared LED Digital display mini desktop Reflow Soldering Machine
Application
The 800L SMT reflow soldering machine is a main equipment produced
by Shengdian. It can be widely used for SMD soldering and fixing in
SMT workshop for PCB board assembly, LED packaging, LED screen
display, mobile phone motherboard, computer motherboard, safety
control motherboard, electronic products etc. It can realize
precise and stable temperature control in order to achieve fast and
even soldering.
Range of application
Solder paste type: lead-free solder, ordinary solder, SMD glue;
Maximum substrate size which can be processed: 550 (mm) ;
It can be used for the following components: 0805, 0603, 0402,
0201, 01005 small component CSP, BGA, single-sided, dual-sided PCB
board.
Main functions
The 800L SMT reflow soldering machine can be used to solder the
electronic parts and components such as BGA, various types of IC,
QFN, resistor, capacitor, diode etc. onto LED screen display and
LED substrate.
Instrument control heat automatically, ensure temperature equilibrium.Optional Computer PID intelligent operation controller.
A special structure of forced hot air circulation system, the upper and lower heating method, heating up fast, high thermal efficiency.
Temperature tolerance alarm, fault diagnosis function.
reflow soldering machine Imported high-temperature motor, smooth running, long life, low noise.
| Mode | 800M | 800L | 800CL | 1000L | 1200L | |||||
| Dimensions(L*W*H)mm | 4800*1100*156 | 5000*1300*1560 | 5310*1560*1560 | 5700*1300*1560 | 6500*1300*1560 | |||||
| Color | ||||||||||
| Weight | 1600KG | 2000KG | 2400KG | 2400KG | 2800KG | |||||
| preheating zones | Up 8bottom8 | Up 10bottom10 | Up 12bottom12 | |||||||
| preheating length | 2800mm | 3140mm | 3140mm | 3880mm | 4580mm | |||||
| Cooling zones | 1 dedicated cooling + 1 external cooling | 2 dedicated cooling + 1 external cooling | 1 dedicated cooling + 1 external cooling | |||||||
| Rectifier structure | Electrolytic plate | |||||||||
| Exhaust volume | 10 cubic/min*2 channel | |||||||||
| Power requirement | Three-phase five-wire 380V (50Hz, 60Hz) | |||||||||
| Total power | 38KW | 48KW | 58KW | 69KW | 80KW | |||||
| Starting power | 25KW | 30KW | 40KW | 50KW | 60KW | |||||
| Normal no-load power | 7KW | 9KW | 12KW | 15KW | 18KW | |||||
| Heating time | About 15 minutes | |||||||||
| Temperature control range | Room temperature -300 ° C | |||||||||
| Temperature control method | Full computer Win7 system + PID closed loop control + SSR drive | |||||||||
| Temperature control sugar content | ±1.5℃ | |||||||||
| Temperature distribution deviation | ±2.5℃ | |||||||||
| Parameter save | ||||||||||
|
|
